Short Radius Elbow

Name: Short Radius Elbow
Brand: DEEPAK STEEL (INDIA)

Get a Price/Quote

MOQ : 1 Unit

Short Radius Elbow Specification

Diameter
15 mm to 1200 mm

Coating Type
None / Corrosion Resistant as per material

Connection Type
Butt Weld

Tolerance
0.5 mm

Bend Radius
1D (Short Radius)

Sealing Type
Welded Joint

Thread Type
N/A (Butt Weld)

Yield Strength
205 MPa (min) for SS 304

Temperature Range
-20C to 800C

Tensile Strength
520 MPa (min) for SS 304

Flexibility
Rigid

Product Type
Short Radius Elbow

Material
Stainless Steel

Connection
Welded

Shape
Elbow (Curved)

Standard
ANSI B16.9 / ASME B16.9 / DIN / JIS

Surface Treatment
Shot Blasted / Pickled / Polished / Sand Blasted

Outer Diameter
15 mm to 1200 mm (as per requirement)

Section Shape
Round

Length
As per standard or custom requirement

Thickness
Sch 10S / 20 / 40 / 80 or Custom

Color
Silver

Usage
Piping Systems, Fluid & Gas Transfer

Rated Pressure
PN6 to PN40 / Schedule based

Application
Petrochemical, Oil and Gas, Power Plants, Chemical Industry, Water Supply

Material Grade
SS 304 / SS 316 / SS 316L / Duplex / Super Duplex

Packaging
Wooden Case / Carton Box / Customized

Heat Treatment
Solution Annealed (on request)

Approval Certificate
EN 10204 3.1 / 3.2, PED, ISO 9001

Weight
Varies by Size (upon request)

Edge Type
Beveled or Plain

Manufacturing Process
Seamless/ERW/Welded/Cold Drawn

Corrosion Resistance
Excellent

Installation
Welded into pipeline

About Short Radius Elbow

DEEPAKSTEEL INDIA is a leading Manufacturer, extensive stockholder of piping productsfor the Oil, Gas, Petrochemical and Nuclear Industries.

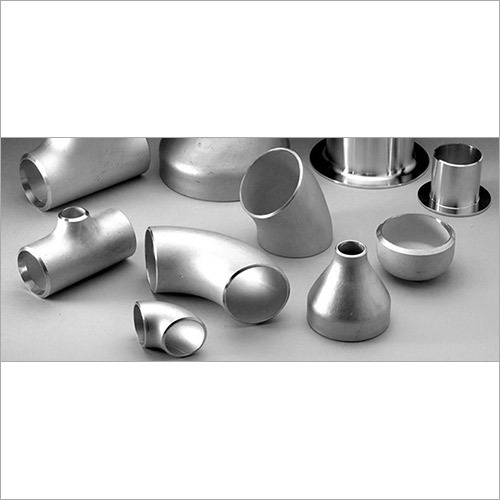

ButtweldPipe Fittings are used for changing direction, branching or for changingpipe bore diameter in piping & tubing system. These pipe fittings are jointusing buttweld method, so that they can called as Buttweld Fittings. Wemanufacture these pipe fittings in different types such as End CapButtweld Fittings, Reducing Buttweld Fittings, 45, 90, 180 Deg. ElbowButtweld Fittings, Equal & Unequal Tee Buttweld Fittings and more

Versatile Manufacturing Processes

Short Radius Elbows are crafted using seamless, ERW, welded, or cold drawn manufacturing methods to ensure robust structural integrity and a reliable fit in various pipeline configurations. Each process is selected based on material grade and application demand, providing adaptability across multiple projects and industries.

Exceptional Corrosion Resistance

Engineered from superior stainless steel grades such as SS 304, SS 316, Duplex, and Super Duplex, these elbows excel in corrosive environments. The offered surface treatments-shot blasted, pickled, polished, or sand blasted-further enhance durability, making them ideal for industries where protection against chemical or moisture exposure is vital.

Customization & Quality Assurance

Elbows are available with custom thicknesses, diameter, and lengths to match specific pipeline requirements. Each product is certified per EN 10204 3.1/3.2, PED, and ISO 9001 standards, ensuring rigorous quality control. Packaging can be customized, with options like wooden cases or cartons, tailored for secure delivery.

FAQ's of Short Radius Elbow:

Q: How is a short radius elbow installed in a piping system?

A: Short radius elbows are typically installed using butt weld connections, ensuring a welded joint that is both rigid and leak-resistant. They are welded directly into the pipeline, providing reliable sealing and structural stability.

Q: What manufacturing processes are used for short radius elbows?

A: These elbows are produced through seamless, ERW, welded, or cold drawn methods. The choice of process depends on required specifications, material grade, and application. Solution annealing heat treatment can be requested to further enhance material performance.

Q: Where are short radius elbows commonly utilized?

A: Short radius elbows find applications in petrochemical plants, oil and gas industries, power generation facilities, chemical processing, and water supply systems, particularly where space constraints and efficient flow direction changes are necessary.

Q: What are the main benefits of using stainless steel short radius elbows?

A: Their key advantages include excellent corrosion resistance, high strength (min tensile strength of 520 MPa for SS 304), adaptability to various pressures and temperatures, and compliance with international standards, ensuring longevity and reliable operation in harsh environments.

Q: Can the weight and dimensions of the short radius elbow be customized?

A: Yes, both dimensions and weight can be customized according to specific project requirements. Outer diameters range from 15 mm to 1200 mm, and thickness can be selected from Sch 10S up to Sch 80 or tailored upon request.

Q: What quality certifications do these elbows hold?

A: Short radius elbows are supplied with EN 10204 3.1/3.2, PED, and ISO 9001 certificates, confirming adherence to stringent European and international manufacturing standards.
