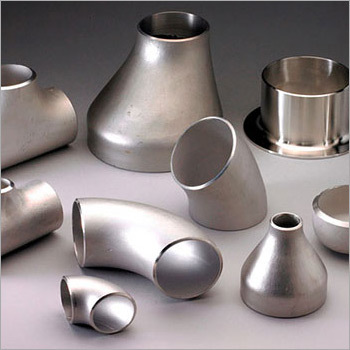

Send InquiryMonel Seamless Butt Weld Fittings
MOQ : 50 Kilograms
Monel Seamless Butt Weld Fittings Specification
- Connection Type
- Welded (Seamless butt weld)
- Flexibility
- Rigid
- Yield Strength
- 170 MPa min (Monel 400)
- Tolerance
- 0.5 mm
- Temperature Range
- -29C to 650C
- Thread Type
- Not Applicable (Seamless Butt Weld)
- Bend Radius
- Standard for pipe fittings, available as per specification
- Sealing Type
- Metal to metal sealing
- Diameter
- 12.7mm to 610mm
- Tensile Strength
- 480 MPa min (Monel 400)
- Coating Type
- Uncoated / Natural
- Product Type
- Seamless Butt Weld Fittings
- Material
- Monel
- Connection
- Butt Weld
- Shape
- Elbow, Tee, Reducer, Cap, Cross (various pipe fitting shapes)
- Standard
- ASTM B366 / ASME SB366
- Surface Treatment
- Polished / Pickled
- Outer Diameter
- 1/2 inch to 24 inch (12.7mm to 610mm)
- Section Shape
- Round
- Length
- Custom/Standard Pipe Fitting Lengths
- Thickness
- Schedule 10S to Schedule 80S (1.5mm to 12mm)
- Color
- Silver / Metallic Grey
- Usage
- High corrosion and temperature services
- Rated Pressure
- Class 150 to Class 2500
- Application
- Petrochemical, Chemical, Oil & Gas, Marine
- Material Grade
- Monel 400 / Monel K500
- Edge Preparation
- Beveled ends (as per ASME B16.25)
- Compliance
- NACE MR0175, PED 2014/68/EU
- Storage Conditions
- Dry, covered, ventilated area
- Non-Magnetic
- Yes (Monel 400)
- Elongation
- 35% min
- Hardness
- Rockwell B75-90 (Monel 400)
- Density
- 8.8 g/cm³
- Manufacturing Process
- Cold forming seamless
- Leak Proof
- Yes
- Maintenance
- Low
- Finish
- Bright / Matte
- Corrosion Resistance
- Excellent against acids, alkalis & seawater
Monel Seamless Butt Weld Fittings Trade Information
- Minimum Order Quantity
- 50 Kilograms
- Supply Ability
- 50 Kilograms Per Week
- Delivery Time
- 1-2 Week
About Monel Seamless Butt Weld Fittings
Specification
- Specifications : ASTM B366 / ASME SB366
- Size : Seamless Butt Weld Fittings: 1/2-10, Welded Butt Weld Fittings: 1/2-48
- Standards : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
- Thickness : 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75
- Types : Seamless / Welded / Fabricated
Exceptional Corrosion Resistance
Monel seamless butt weld fittings are recognized for their remarkable resistance to aggressive environments, including acids, alkalis, and seawater. This feature makes them highly suitable for industries where materials are exposed to corrosive substances, ensuring longevity and reducing replacement costs.
Precision Manufacturing Standards
Manufactured via cold forming seamlessly and edge-prepared as per ASME B16.25, these fittings boast precise tolerances (0.5 mm), leak-proof performance, and a range of surface treatments. Their adherence to ASTM B366 / ASME SB366 standards guarantees consistent quality and reliability, suitable for demanding industrial applications.
Versatile Applications
Designed for use in petrochemical, chemical, marine, and oil & gas sectors, Monel butt weld fittings deliver outstanding mechanical strength and flexibility in connection types. With a wide operating temperature range-from -29C to 650C-and compatibility with various pressure classes, they address numerous piping requirements.
FAQ's of Monel Seamless Butt Weld Fittings:
Q: How are Monel seamless butt weld fittings manufactured for optimal leak-proof performance?
A: These fittings are produced through a cold forming seamless process, resulting in a uniform structure and increased structural integrity. Beveled ends are prepared in accordance with ASME B16.25, ensuring reliable metal-to-metal sealing and leak-proof connections.Q: What is the main benefit of using Monel fittings in corrosive environments?
A: Monel, with its excellent resistance against acids, alkalis, and seawater, provides enhanced durability and reduced risk of corrosion, making these fittings ideal for aggressive service conditions in industries such as marine, petrochemical, and chemical processing.Q: When should Monel seamless butt weld fittings be chosen for a piping system?
A: Choose Monel fittings when high corrosion resistance, non-magnetic properties, and superior mechanical strength are required-particularly for high temperature or pressure services, and where compliance with standards such as NACE MR0175 and PED 2014/68/EU is critical.Q: Where are Monel butt weld fittings commonly utilized?
A: Monel butt weld fittings are widely used in marine, chemical, petrochemical, and oil & gas industries, especially where exposure to aggressive chemicals and seawater demands exceptionally robust and corrosion-resistant connections.Q: What shapes and sizes are available for Monel butt weld fittings?
A: A variety of shapes-including elbows, tees, reducers, caps, and crosses-are offered, with outer diameters ranging from 1/2 inch (12.7 mm) to 24 inch (610 mm) and thickness options from Schedule 10S to Schedule 80S (1.5 mm to 12 mm). Custom lengths and specifications can be provided.Q: How does the cold forming seamless process benefit the structural integrity of these fittings?
A: Cold forming seamless manufacturing imparts enhanced mechanical properties such as higher tensile and yield strength, uniform grain structure, and reduced risk of defects, ensuring reliable, leak-proof performance in demanding conditions.Q: What are the recommended storage and maintenance practices for Monel butt weld fittings?
A: Store Monel fittings in dry, covered, and well-ventilated areas to prevent moisture-related issues. Maintenance is minimal-regular inspections suffice-thanks to Monel's inherent corrosion resistance and robust finish.
