Long Radius Elbow

Name: Long Radius Elbow
Brand: DEEPAK STEEL (INDIA)
Price: 1100 INR
Availability: InStock

Price 1100 INR/ Kilograms

Get a Price/Quote

MOQ : 100 Kilograms

Long Radius Elbow Specification

Yield Strength
205 MPa min (for SS304)

Tensile Strength
520 MPa min (for SS304)

Tolerance
0.5 mm

Sealing Type
Metallic

Thread Type
Not Applicable (Welded End)

Flexibility
Rigid

Bend Radius
1.5D (Long Radius)

Coating Type
None (Stainless Steel Natural Finish)

Temperature Range
-20C to +600C

Diameter
15 mm 1200 mm

Connection Type
Welded

Product Type
Long Radius Elbow

Material
Stainless Steel

Connection
Butt Weld

Shape
Elbow (Curved)

Standard
Other

Surface Treatment
Polished / Shot Blasted

Outer Diameter
1/2 to 48 (DN15DN1200)

Section Shape
Round

Length
Custom / Standard as per dimension

Thickness
2 mm 24 mm

Color
Silver

Usage
Industrial Piping, Fluid Transmission

Rated Pressure
Up to SCH160 / XXS

Material Grade
SS304 / SS316 / SS316L

Application
Oil & Gas, Chemical, Petrochemical, Water Supply

Corrosion Resistance
Excellent

Delivery Condition
Annealed & Pickled

Elbow Angle
45, 90, 180

Packaging Type
Wooden Cases / Bubble Wrap

Manufacturing Process
Seamless / Welded

End Preparation
Bevelled or Plain

Test Certificate
Available 3.1 / 3.2

About Long Radius Elbow

DEEPAKSTEEL INDIA is a leading Manufacturer, extensive stockholder of piping productsfor the Oil, Gas, Petrochemical and Nuclear Industries.

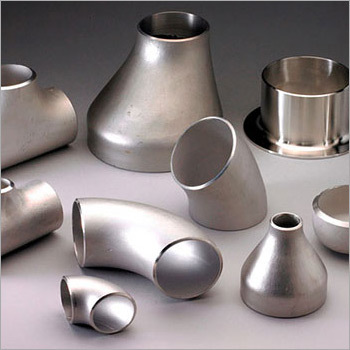

ButtweldPipe Fittings are used for changing direction, branching or for changingpipe bore diameter in piping & tubing system. These pipe fittings are jointusing buttweld method, so that they can called as Buttweld Fittings. Wemanufacture these pipe fittings in different types such as End CapButtweld Fittings, Reducing Buttweld Fittings, 45, 90, 180 Deg. ElbowButtweld Fittings, Equal & Unequal Tee Buttweld Fittings and more

Superior Corrosion Resistance

These Long Radius Elbows offer excellent corrosion resistance due to their stainless steel composition and high-quality surface treatment. The superior resistance ensures prolonged operational life even in chemically aggressive environments, including oil, gas, petrochemical, and water supply industries.

Quality Assurance and Certification

Every elbow is manufactured under stringent quality control processes, including seamless and welded fabrication. Each unit is delivered with comprehensive test certificates (3.1/3.2) to assure customers about conformity to mechanical and chemical standards, enhancing traceability and reliability.

Versatile Industrial Applications

Designed for custom and standard applications, Long Radius Elbows are widely used in varied sectors such as oil & gas, chemical processing, petrochemicals, and water transmission. Their robust design, flexibility in size, and compatibility with welded connections make them a preferred choice for demanding piping systems.

FAQ's of Long Radius Elbow:

Q: How are Long Radius Elbows manufactured?

A: Long Radius Elbows are produced through seamless or welded processes using stainless steel grades such as SS304, SS316, and SS316L. The manufacturing ensures precise dimensions and excellent mechanical properties, with delivery condition being annealed and pickled for improved durability.

Q: What end preparations are available for these elbows?

A: You can choose between bevelled or plain ends, both suitable for butt weld connections. This flexibility ensures compatibility with various industrial piping setups and maintains the integrity of the joint.

Q: When should I use a Long Radius Elbow in my piping system?

A: Long Radius Elbows are ideal for situations where smooth flow direction changes and minimal pressure loss are critical, such as in fluid transmission for oil, gas, chemical, or water supply pipelines. Their 1.5D radius allows improved flow characteristics.

Q: Where can these elbows be used?

A: These elbows are suitable for installation in oil & gas plants, petrochemical units, chemical processing facilities, and water supply piping. Their excellent corrosion resistance and high-temperature tolerance make them effective for critical industrial applications.

Q: What are the benefits of using stainless steel Long Radius Elbows?

A: Stainless steel elbows offer exceptional corrosion resistance, robust mechanical strength, and long-lasting durability. Their polished or shot blasted surfaces provide an appealing finish while ensuring optimal performance in aggressive environments.

Q: What surface treatments are available and how do they affect performance?

A: Surface treatments include polished and shot blasted finishes, both designed to enhance the corrosion resistance and aesthetic appeal of the elbows. These treatments support performance longevity, especially in harsh chemical settings.

Q: Is a test certificate provided with these elbows?

A: Yes, every Long Radius Elbow is supplied with test certificates (3.1/3.2), indicating compliance with international standards and verifying the mechanical and chemical properties of the material.
