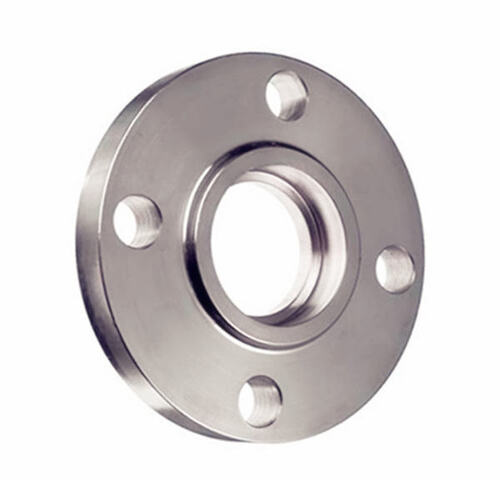

Orifice Flanges

Name: Orifice Flanges
Brand: DEEPAK STEEL (INDIA)

Get a Price/Quote

MOQ : 1 Unit

Orifice Flanges Specification

Dimension (L*W*H)
Custom/As per requirement

Grade
304/316/316L/321/Other Stainless Grades

Feature
Corrosion resistant, Precision engineered, Leak-proof

Application
Flow measurement in pipelines

Purity
High stainless steel purity

Product Type
Orifice Flanges

Material
Stainless steel

Standard
ASME B16.36 / ANSI B16.36

Shape
Round

Surface
Polished

Connection
Flanged

Technics
Forged

Pressure
Class 150 to Class 2500

Size
1/2 to 24 (DN15 to DN600)

Color
Silver

Inspection & Testing
Hydrostatic, Ultrasonic, PMI tests available

Usage Standard
Used in refineries, chemical, petrochemical, oil & gas industries

Marking
Size, Pressure Class, Material, Heat Number

Finish Type
Smooth finish

Packing
Wooden crates, Export worthy packing

Temperature Range
-29°C to 600°C

End Connection
Weld Neck, Slip-On options

Orifice Plate Inclusion
Comes with orifice plate or without

Gasket Compatibility
Supports RF, RTJ gaskets

Flange Face Type
Raised Face (RF), Ring Type Joint (RTJ)

Bolt Hole Arrangement
Conforming to international standards

About Orifice Flanges

Jump on the new release of masterful Orifice Flanges, crafted for inestimable performance in flow measurement applications. Grab these precision-engineered, corrosion-resistant flanges available in silver round form and a variety of stainless steel grades, including 304, 316, and beyond. Triumphantly supporting RF and RTJ gaskets, their leak-proof design seamlessly fits into pipelines for oil & gas, petrochemical, and refinery use. Choose from options with or without orifice plates. Rigorously tested and elegantly packed, the flanges arrive export-ready for your installation needs.

Primary Competitive Advantages, Usages & Use Type

Orifice Flanges stand apart thanks to their unrivaled corrosion resistance, precision engineering, and leak-proof structure. Used extensively as flow measurement devices, these flanges are the top choice for critical operations in refineries and petrochemicals. Designed for distributors, importers, exporters, and producers, their forged technics and versatile compatibility ensure they adapt to various system requirements with ease. The usage type includes applications in demanding industrial pipeline systems, guaranteeing operational reliability and efficiency.

Main Domestic Market, Supply Ability & Packaging Details

Our triumphant Orifice Flanges command a remarkable presence in India's domestic market, with an impressive supply ability to meet bulk outlay requirements. Packing & Dispatch follow strict protocols, using sturdy wooden crates and export-worthy packing to assure safe transit. Each unit is meticulously marked for size, pressure class, and other critical details. We offer these high-quality flanges at the lowest market price, ensuring unbeatable value and timely delivery to every corner of the country.

FAQ's of Orifice Flanges:

Q: How do Orifice Flanges facilitate flow measurement in pipelines?

A: Orifice Flanges are specifically designed to support orifice plates, which help calculate and monitor fluid flow rates in pipelines by measuring pressure differences across the plate.

Q: What types of gaskets are compatible with these Orifice Flanges?

A: These flanges support Raised Face (RF) and Ring Type Joint (RTJ) gaskets, offering compatibility with standard industrial sealing solutions and providing flexible installation options.

Q: When is it necessary to select an Orifice Flange with or without an orifice plate?

A: Selection depends on your application requirements. If flow measurement is needed, opt for a flange with an orifice plate; otherwise, flanges without the plate may be suitable for basic connection purposes.

Q: Where can these Orifice Flanges be used?

A: These flanges are widely used in refineries, chemical, petrochemical, and oil & gas industries, making them suitable for a range of demanding industrial environments.

Q: What inspection and testing processes are applied to ensure quality?

A: Each Orifice Flange undergoes hydrostatic, ultrasonic, and Positive Material Identification (PMI) tests, ensuring structural integrity, material compliance, and superior performance in the field.

Q: How does the packing and dispatch process assure safe delivery?

A: All flanges are packed in robust wooden crates and export-worthy materials to prevent damage during transportation, guaranteeing that products arrive in pristine condition.
